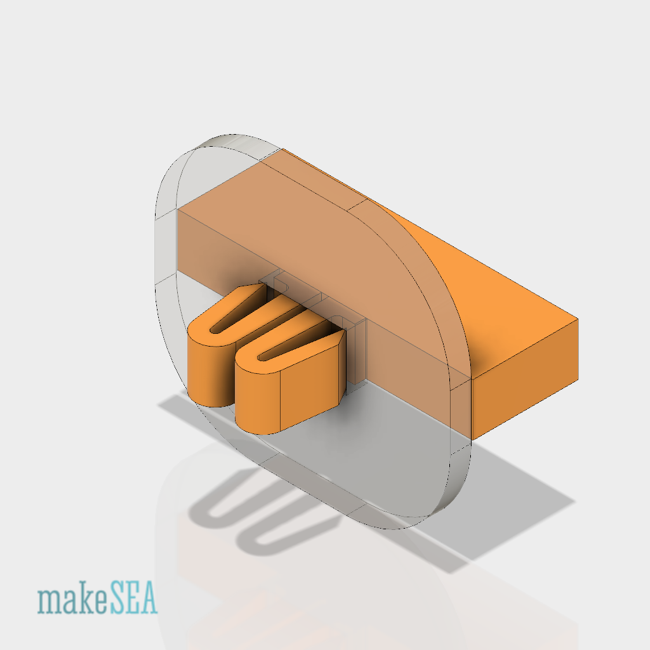

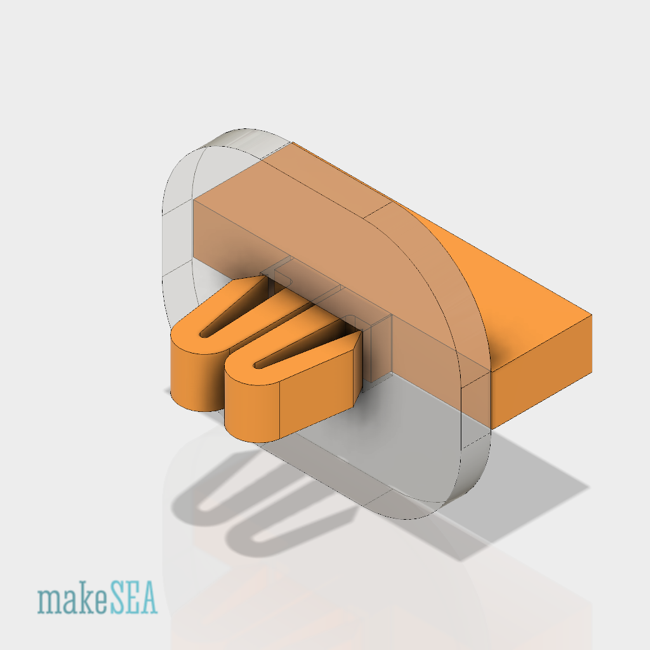

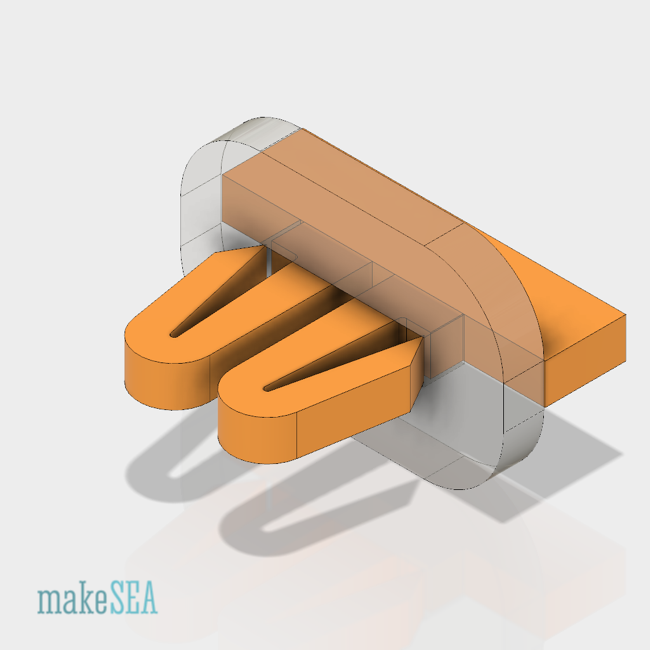

Snap - Fit Double Clip Version B

Project Summary

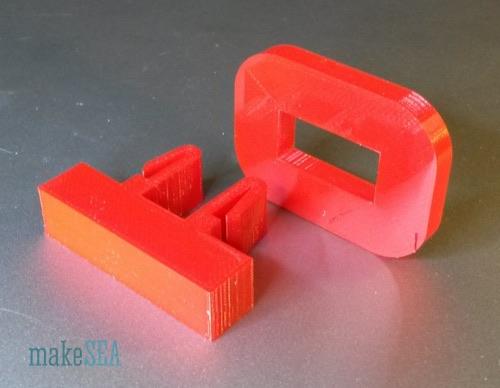

See description of basic “Snap Fit Clip Double Clip”. Only difference is the hook angle used in order to make it dismountable. The slanted angle of the hook allows the clip to be dismounted by pulling it back.

Project Details

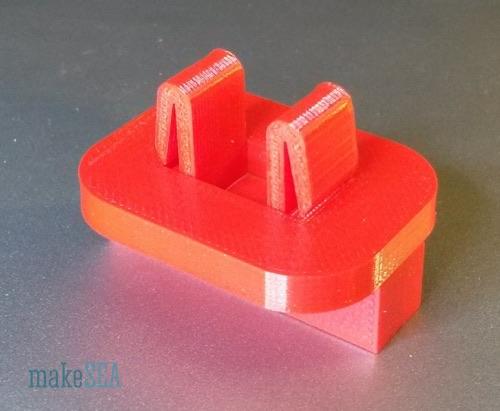

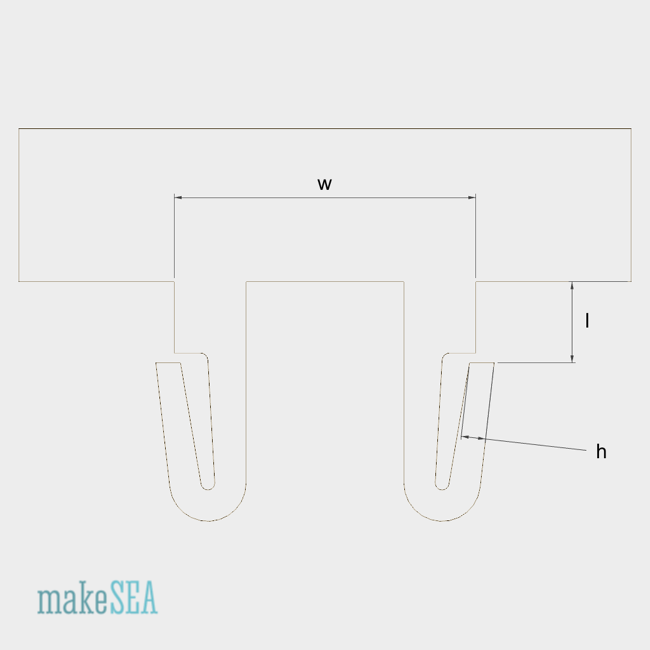

The angle is a parameter in the f3d-file. Recommended values are from 135° to 160° (depending on the required holding force and the selected material). Designs are tested with PETG.
